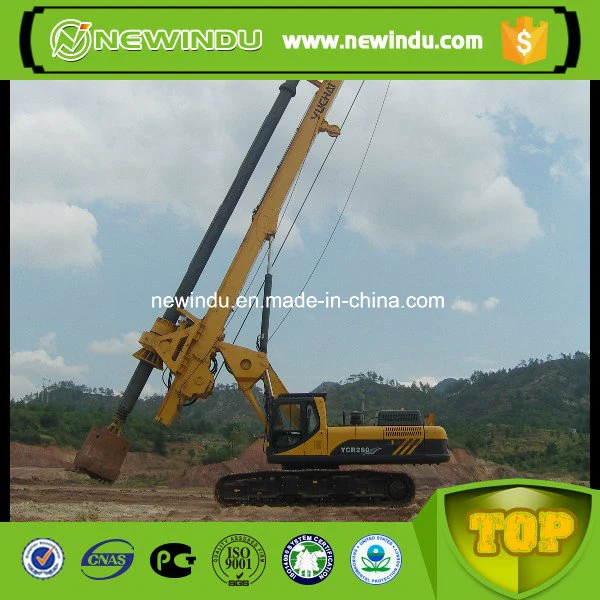

China Rotary Drilling Rig Yuchai YCR260 Water Drilling Rig
Project | Parameters | |
Chassis | Engine Type | QSM11-C330 |
Engine Power/Speed | 246/2100 | |
Crawler Expansion Width (From The Outside) | 4400 | |
Crawler Board Width | 800 | |
Traction Force | 520 | |
Power Head | Max. Output Torque | 260 |
Power Head Speed | 6-25 | |
Max.Pull-Down Piston Push | 200 | |
Max.Pull-Down Piston Pull | 250 | |
Pressurized cylinder Stroke | 5000 | |
Winch | Main Winch |
|
Max.Line Pull of the first layer | 280 | |
Max.Line Speed | 55 | |
Wire Rope Diameter | 32 | |
Auxiliary Winch |
| |
Max.Line Pull of the first layer | 80 | |
Max.Line Speed | 65 | |
Wire Rope Diameter | 20 | |
Mast | Mast Forward Inclination | 5 |
Mast Sideward Inclination | 4 | |
Hydraulic Pump | Max. Working Pressure | 35 |
Depth and Diameter | Max. Drilling Diameter | 2500 |
Max. Drilling Depth | 80 | |
Drilling Pipe | Drilling Pipe | 508 |
Working State Quality | 82 | |
