Crawler reverse circulation drilling rig, water well drilling rig

400C Crawler mounted well drilling machine Technical Parameter  Model400CMax. drill depth250mDrill diameter110-325mmDiesel Engine93KW (Cummins)Working air pressure1.05-2.46MPaAir consumption16-34 m³/minDrill rod length3mDrill rod diameter89mm/76mmAxial pressure5tLifting force12tSlow lifting speed4m/minFast li

Featured Products

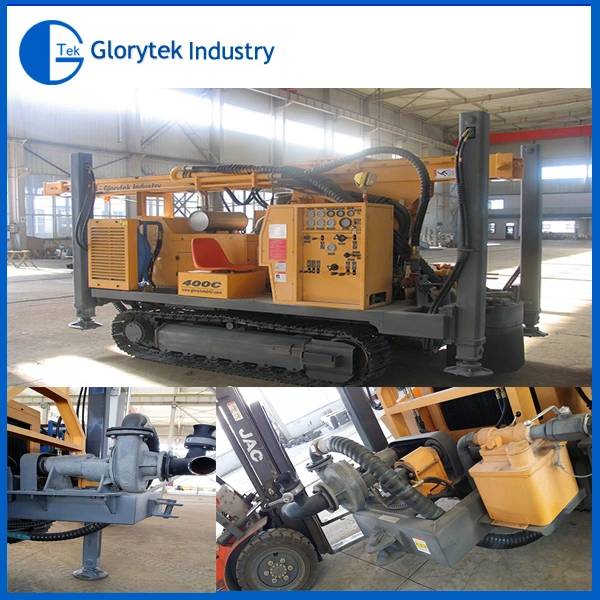

400C Crawler mounted well drilling machine

Technical Parameter


Model400C
Max. drill depth250m
Drill diameter110-325mm
Diesel Engine93KW (Cummins)
Working air pressure1.05-2.46MPa
Air consumption16-34 m³/min
Drill rod length3m
Drill rod diameter89mm/76mm
Axial pressure5t
Lifting force12t
Slow lifting speed4m/min
Fast lifting speed14.5m/min
Slow feed speed6.2m/min
Fast feed speed25m/min
Rotation torque5700-6600Nm, 2820-3300Nm
Rotation speed0-90r/min, 0-180r/min
Drilling MethodDownhole hammer or Mud Drilling
Travel speed3.5Km/h
Grade ability21°
Weight7.8 t
Whole dimension6×2.1×2.8m
Application formationUnconsolidated layer or bedding rock
Drill methodDown the hole or mud pump drilling
HammerMedium or high air pressure series

Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig


Advantage

1. Move easily & good mobility
2. Simpleoperation & high efficiency
3. Commercial Price.

Application

1. Drilling wells for urban and rural life

2. Drilling wells for agricultural irrigation and industries

3. Drilling for geotechnical survey

4. Drilling construction engineering holes

5. Drilling geothermal pump wells



Structure Features:

1- Diesel engine-driving hydraulic system. Travel, rotate, feed, hoist, land, lift, unload, and so on all are run by Hydraulic components.

2-Working unit consists of feed system, slide guide(mast),top-driving rotary head, slide plate,centering apparatus, unloading system, hoisting system, etc.

3-Axial pressure, feed speed and rotation speed are adjustable.

4-Crawler self-driven structure travel mode, easy to move. Use crawler chassis. Steel track link(Inlaying rubber block is in option which is easy to travel on city streets)

5- During operation, four hydraulic landing legs will adjust the rig body level and stability

6- Four extra high landing legs are available, during long-distance transportation loaded with vehicle,it can be moved onto the vehicle directly and easy for transportation, no need to be loading or lifting.

7-Auxiliary hoist can list items within 1 ton (such as drilling tools, tools, etc), and also help to load or unload drill rod and drill tools.

8-The slide guide can be fixed with the body during operation in order to improve the operating stability of the mast.

9-Level instrument and dedicated centering apparatus ensure the perpendicularity and accuracy of the drilling hole.

10- Compressed-air system provides special oil mist lubricator to lubricate the impactor and longer the serving life of it.

Packing
Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig
Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig

Related Product

Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig

Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig




Our Company & Service
Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig


Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.


Customer photos
Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig



Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig



Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig

Crawler Reverse Circulation Drilling Rig, Water Well Drilling Rig

FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.

Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 3-5 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
