Dingli Anchoring Rotary Drilling Rig Construction/Pile Foundation Drilling Rig

Product Details                                              The maximum drilling depth of the drill

Featured Products





Product Details

The maximum drilling depth of the drilling rig is 20M, and the drilling diameter is 500-1500MM. We are a rotary drilling rig manufacturer with 25 years of production experience. The main products are rotary drilling rigs, pile machines, cranes, etc., with a wide range of applications and complete certificates. For more information welcome your advice!
Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation





Features

1.The construction noise is low, does not affect human health, environmental protection, energy saving and does not pollute the environment.

2.Workbench can be moved back and forth, which can drive both small and large diameter piles.


3.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

4.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.


5.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.

6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.


Parameter

modelDF-20
Working modehydraulic oil cylinder pressure
Drilling diameter Φ500-Φ1800
drilling depth 5-30m
Diamension 9800X2400X2900mm
Total weight16T
Power head max output torque 24000N.m
Rotary speed (r/min)10-30RPM
Assisting winch max lifting force10KN
Assiting winch max lifting speed50m/min
Mast sidewards inclination±4°
Mast forwards inclination
Max working pressure25Mpa
pilot pressure12Mpa
Travelling speed (km/h)2 km/h
Diesel engine power (KW)125KW,cummins,water cooling ,turbo charger
Is it customizable?Yes

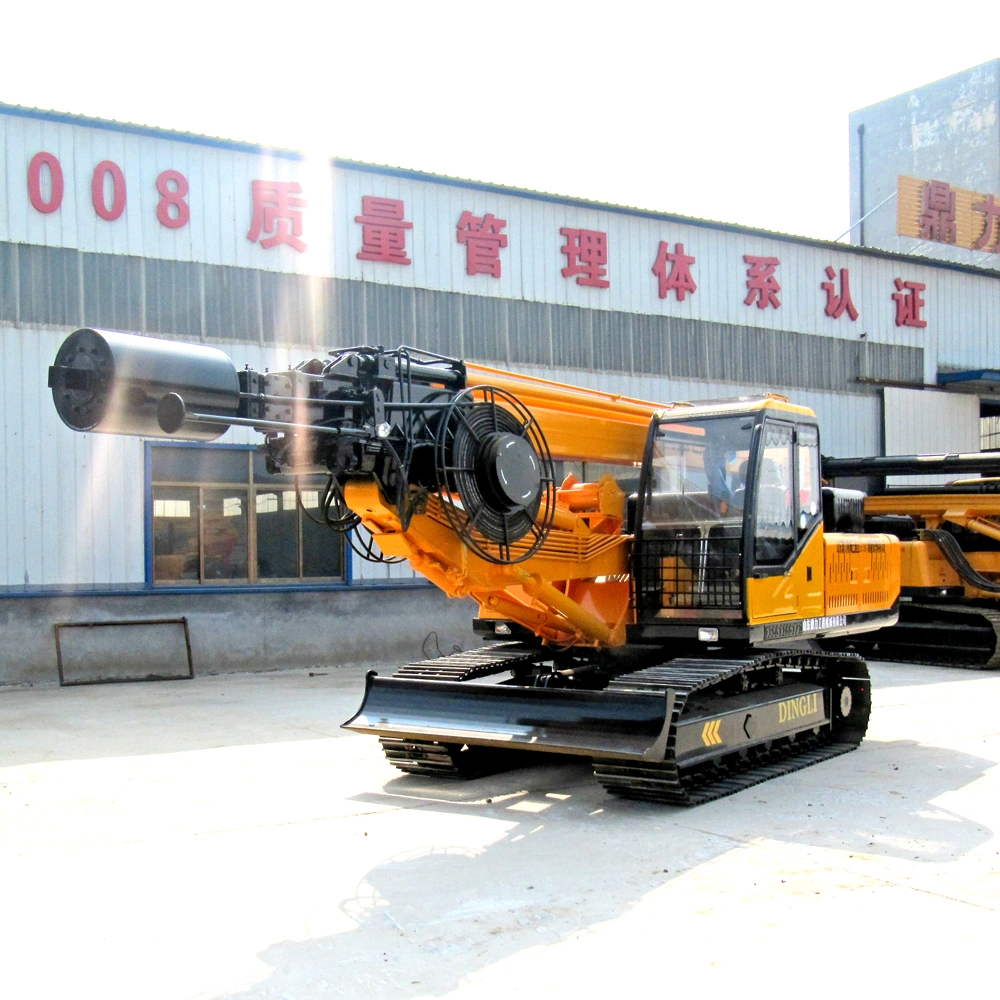

Product photo

Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation
Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation
Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation



Company profile

     Shandong Yahe  Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.


Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation
Working photo




Dingli Anchoring Rotary Rig Drilling/Piling Rig for Construction/Pile Foundation



RFQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
