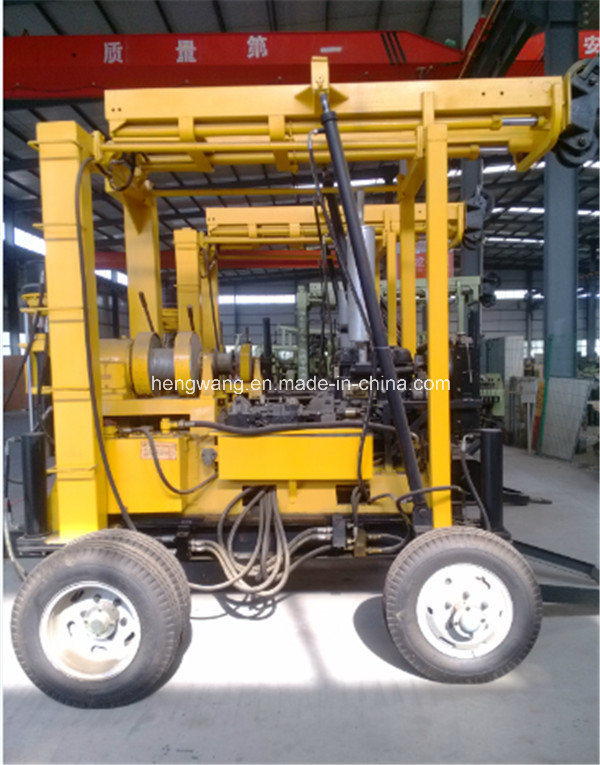

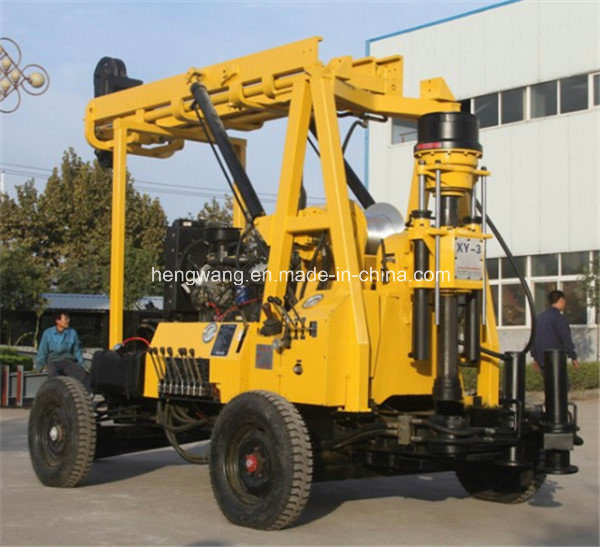

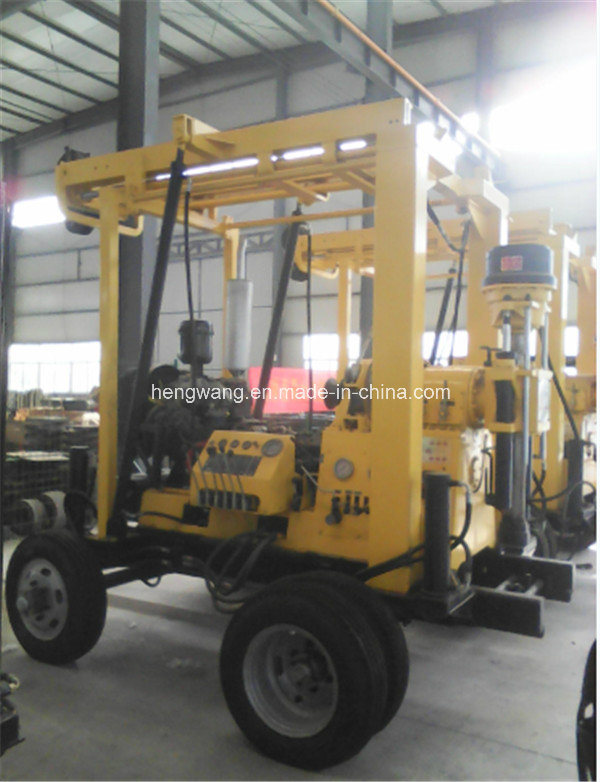

Engineering and water well drilling rig/engineering geological exploration drilling rig
Product Introduction
a. XY-3 drilling rig adopts CG140 model auto transmission, has 10 rotation speeds and easonable speed range, with eight forward roation gears and two reverse rotation gears, high speed, strong stroke and wide scope of application.
b. Large engine power and two reverse rotation gears, can easily solve the drilling work accident.
c. The operation handles are fixed together in reasonable layout to make it more convenient for workers to operate the machine.
d. Equipped with normally closed hydraulic chuck, operation is flexible and reliable
e. Spindle and hoist can be operated separately.
f.  Spindle has big inner diameter, able to use big hexagonal drilling rod.
Technology Parameters

Unity machine parameter
Drilling depth600m
Max open hole caliber300mm
End hole caliber75mm
Drilling Rod diameter60mm
Drilling angle90°~65°
Dimension2500 x 900 x 1800mm
Drill weight (without power)1600kg
Spindle
spindle speedForward 30-1050r/min
Reverse 29 137r/min
Spindle stroke600mm
Spindle inner diameter96mm
Lifting capacity6000kg
Hoist
Max.Single line lifting capacity4000kg
Max.Single line lifting speed0.5-1.9m/s
Wirerope caliber12.5mm
Wirerope length50m
Reel diameter300mm
Hug folldgate belt width90mm
Mud pump
TypeBW-250
Displacement250 L/min
Work pressure80kg/cm²
Water inlet pipe diameter75 mm
Water outlet pipe diameter50 mm
Gear Oil pump
Duplex gear oil pumpCBF-F63/25
Front Displacement, pressure63 L/min  20Mpa
Behind Displacement, pressure25 L/min  20Mpa
Power
Diesel engine4105 76HP
Electric motorY180L-4 59K
