Product Description
1.Drilling capacity: BQ 500m;NQ 350m;HQ 150m
2.Adapt to wireline coring,mineral deposits prospecting,exploration of geology,metallurgy,coal,patroleum,ground water etc,to meet your various requierments,very functional and capable;
3. it is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.
4. the mast have sliding, extending and retracting function, convenient and stable for drilling.
5. the hydraulic pump is driven by explosion-proof electric motor.
6. it is a professional machine for underground drilling, diamond coring for mining exploration, suitable for diamond drilling with wireline coring technique;
Main Features
1.Full Hydraulic and Drill Head model.
The drill head rotation is realized with four hydraulic pumps driven by five diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.
2.In good disassemblability.
The rig is adopted fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space for drilling of hole at 45°~90° with stronger adaptability.
3.Strong techniques adaptability.
Besides diamond drilling with wire line coring technique, it is in strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other stratum.
Technical Data
Working Site
Packing and Shipping
Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
1.Drilling capacity: BQ 500m;NQ 350m;HQ 150m
2.Adapt to wireline coring,mineral deposits prospecting,exploration of geology,metallurgy,coal,patroleum,ground water etc,to meet your various requierments,very functional and capable;
3. it is separate in structure, small in size, light in weight, flexible in movement and convenient in operation.
4. the mast have sliding, extending and retracting function, convenient and stable for drilling.
5. the hydraulic pump is driven by explosion-proof electric motor.
6. it is a professional machine for underground drilling, diamond coring for mining exploration, suitable for diamond drilling with wireline coring technique;
Main Features
1.Full Hydraulic and Drill Head model.
The drill head rotation is realized with four hydraulic pumps driven by five diesel engines; this also makes the feeding hydraulic cylinder system realize its full stroke feeding in both higher and lower speed.
2.In good disassemblability.
The rig is adopted fission style in design, including power unit, hydraulic oil tank, manipulation platform and operation mechanism, i.e. the drilling section. So they are in light weight and can be carried by man power or animal power. The rig can be applied and performed in narrow space for drilling of hole at 45°~90° with stronger adaptability.
3.Strong techniques adaptability.
Besides diamond drilling with wire line coring technique, it is in strong techniques adaptability. It is applicable for the drilling and feeding requirement of any other stratum.
Technical Data
| Item | Model | HFDX-2 drilling rig |
| Basic parameter of drilling capacity | BQ | 350m |
| NQ | 230m | |
| HQ | 120m | |
| Power unit | Model | 2 sets double cylinder diesel engine |
| Rated power of single engine | 33KW | |
| Rated speed | 2500rpm | |
| Drill head | Max. Spindle torque | 334~930N·m |
| Max. Spindle speed | 0~900rpm | |
| Feeding system (feed with hydraulic cylinder) | Feeding stroke | 1700mm |
| Lifting capacity | 50kN | |
| Feeding capacity | 25kN | |
| Main hoist | Lifting capacity | 18kN (single-wire) |
| Lifting speed | 84m/min | |
| Rope capacity | 30m | |
| Steel wire diameter | 12mm | |
| Wire line winch | Lifting capacity | 8.4kN (bare drum) |
| Lifting speed | 90~240m/min | |
| Rope capacity | 500m | |
| Steel wire diameter | 6mm | |
| Mud pump | model | BW-100A |
| Overall dimensions (L*W*H) Main machine (in transport position) | 3500*1500*1300mm | |
| Dimensions of the disassembled parts (without mud pump) | The largest part not more than 100kg | |

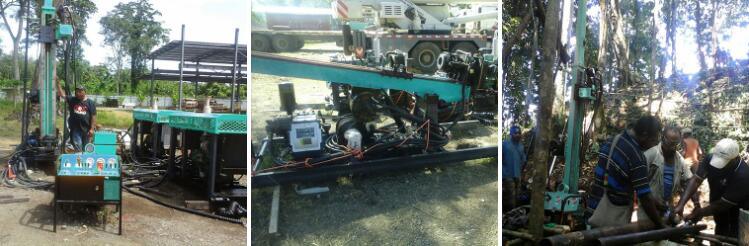

Working Site
Packing and Shipping

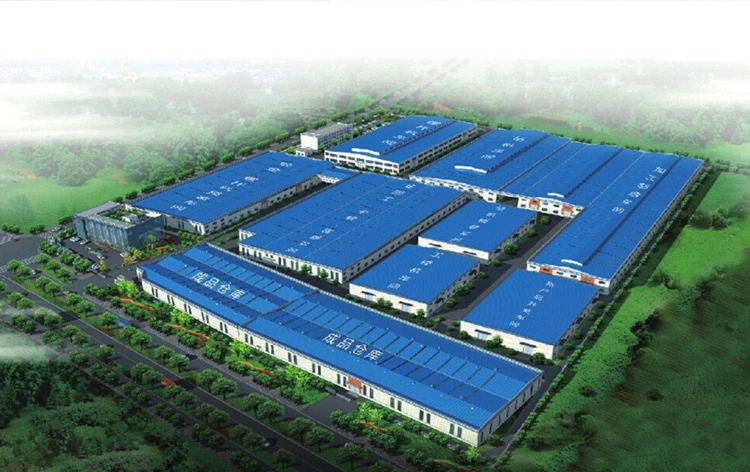

Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig, horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.

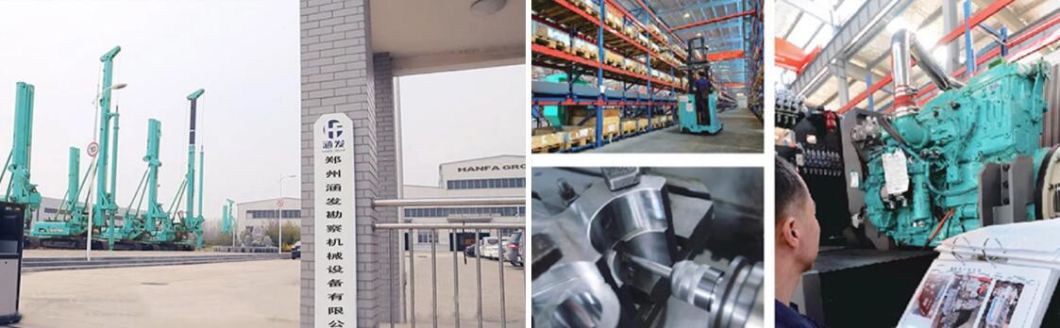

1. More than 20 years experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
