Hfcr-8 1700-3050m Multifunctional Geological Diamond Core Drilling Rig/Drilling Rig

Product Description    1. HFCR-8 Hydraulic Core Drilling Rig, an up-to-date multifunctional product is a thoroughly new-type hydraulic core drilling rig developed on the basis of the market demand and the advanced techniques in the world. 2. HFCR-8 is suitable to be used in plains, hills, high temperatur

Featured Products

Product Description
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill Rig1. HFCR-8 Hydraulic Core Drilling Rig, an up-to-date multifunctional product is a thoroughly new-type hydraulic core drilling rig developed on the basis of the market demand and the advanced techniques in the world.
2. HFCR-8 is suitable to be used in plains, hills, high temperature as well as low temperature places. The main machine is integrated in structure, which consists of self-propelled chassis, power, mud pump and hoist. It is wire-line coring, and at the same time it has the unique top drive function.
3. HFCR-8 is excellent in performance, high in working efficiency, easy for operation and it can efficiently keep the operators from danger.

Technical Data

Power UnitPower276 kW (370HP) at 2100 r/min
Drilling CapacityNQ3050m
HQ2400 m
PQ1700 m
Drill HeadRPM of SpindleThree Shifts/ Stepless ChangeThree 0-1250 RPM
Max. Torque of Spindle7300 N·m at 170 rpm
1300 N·m at 1250 rpm
Spindle Diameter121 mm(4.76 inch)
Max. Lifting capacity of Spindle295 kn
Max. Feeding Power152 kN
Capacity of Main HoistHoisting force (single wire)120kN
Steel Wire Diameter21.5 mm
Steel Wire Length50 m
Capacity of Wireline HoistHoisting Force (single wire)15 kN(bare drum)
Steel Wire Diameter6.3 mm
Steel Wire Length2800m
MastEffective Hoisting Height9.6 m
Mast Adjusting Angle0°-90°
Drilling Angle45º off horizontal to 90ºvertical down
Feeding Stroke4700mm
Slippage Stroke1100mm
Foot ClampClamping Scope55.5-117.5 mm through hole Ф154mm
Mud PumpTypeReciprocating Pump Triplex Plunger
ModelBW320
Stroke110mm(4.3 inch)
Output volume320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min)
Discharge pressure4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi)
OthersWeight25000 Kg
Transport Dimensions (L × W ×H )8300×2400×3500mm

Working Site
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill Rig

Company Introduction
Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill Rig1. More than 30 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.

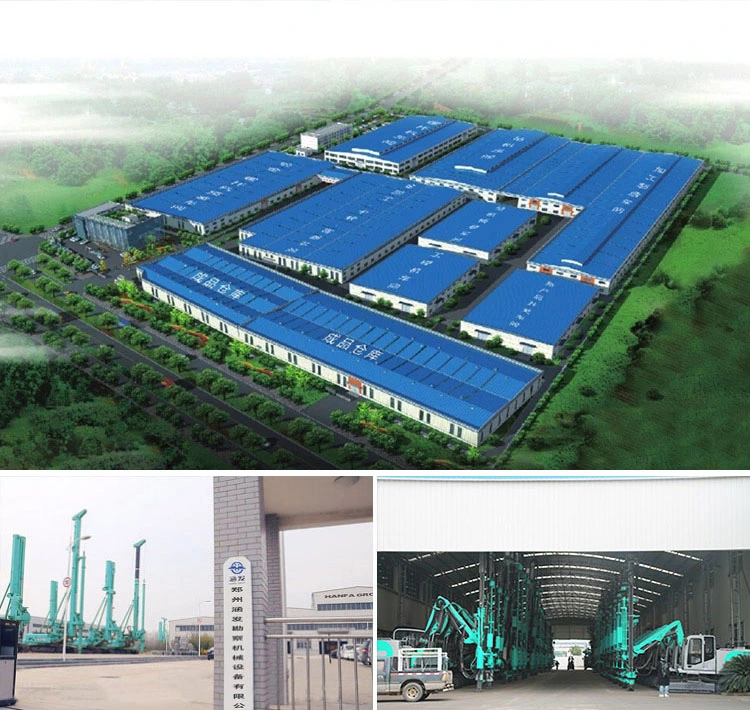

Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigHfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigWorkshop
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigOur Customers

Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigHfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigService
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigHfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigOur Honor
Hfcr-8 1700-3050m Multi-Functional Geological Diamond Core Drilling/Drill RigFAQ
1. Are you trading company or manufacturer
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2. Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provide the training for your staff.

5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
