Portable Hydraulic Electric Water Well Borehole Drilling Rig Machine Mine Drilling Rig
Product Description
The hydraulic drilling rig is mainly used for railway, highway, water conservancy, hydropower station engineering and drainage hole, grouting hole construction, especially in the tunnel hole drilling engineering construction.
The products have been exported to the United States, France, Canada, Indonesia, Russia, Vietnam, Australia, South Korea, Iran and other countries, access to customers alike.
Technical Parameters
Drill Rig
| Model | YGMG - 40 | YGMG - 50 | YGMG - 70 |
| Drilling Diameter | Φ90-180mm | Φ90-165mm | Φ90-200mm |
| Drilling Depth | 10-60m | 25-70m | 35-80m |
| Voltage | 380v | 380v | 380v |
| Drilling Pipe | Φ76*1500mm | Φ76*1500mm/Φ89*1500mm | Φ76*1500mm/Φ89*1500mm |
| Hole angle | 0-90° | 0-90° | 0-90° |
| Output Rotary speed | 90rpm | 70rpm | 70rpm |
| Rated output torque | 2400N.m | 2500N.m | 3900N.m |
| Power head max stroke | 1800mm | 1800mm | 1800mm |
| Max lifting force | 25kn | 30kn | 35kn |
| Power head max feeding force | 20kn | 25kn | 25kn |
| Hydraulic system rated pressure | 16Mpa | 17-18Mpa | 17-18Mpa |
| Oil pump electric power | 4kw | 22kw | 22kw |
| Rotary electric power | 4-pole,7.5kw | Hydraulic | Hydraulic |
| Hydraulic station dimension | 640*600*580mm | 1850*780*1360mm | 1850*810*1280mm |
| Dimension | 2230*380*550mm | 3000*780*1360mm | 3100*1000*1500mm |
| Weight | 1000kg | 1260kg | 1460kg |

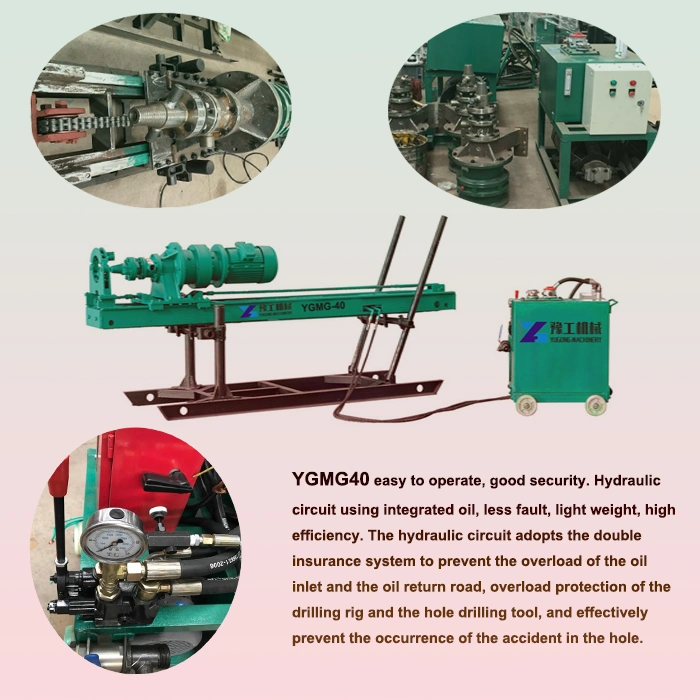

Product and Spare Parts Show

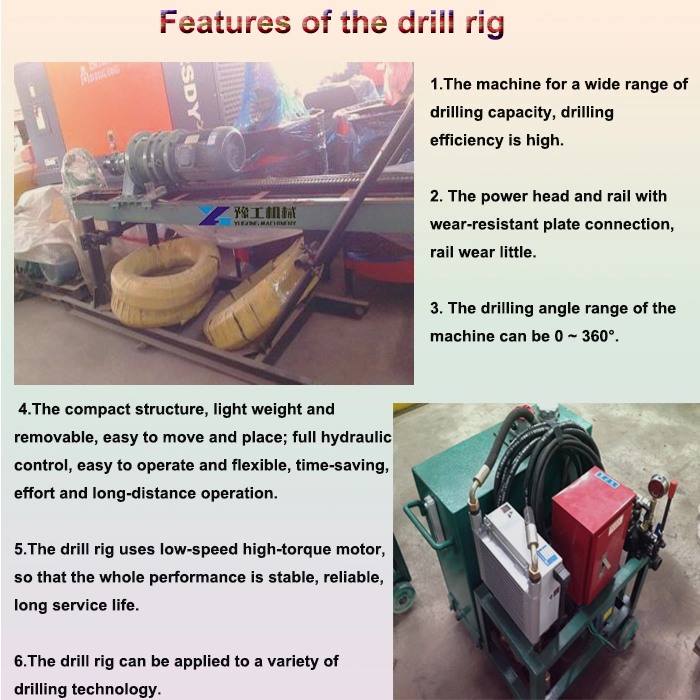

Product Features and Details
Product Application
Packaging & Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Payment Terms
We accept L/C, T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Frequently Asked Questions
1. Q: Are you trading company or manufacturer?
A: We are original equipment manufacturer.
2. Q: How long is your delivery time?
A: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
A: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
