Product Description:
Committed to the needs of green mining, Zhigao machinery developed this model of low cost high performance, eco- friendly, safa, compact & high efficiency separated DTH drill rig, widely used in various surface mines, quarries & construction work sites, etc.
This model is the new generation of Zhigao classic priduct series, with the collective advantages of various different models, this machine with hole range of 110-152mm and new enclosure design, and oscillation, ZGYX-425 product series has excellent stability and outstanding appearance in the same class of products

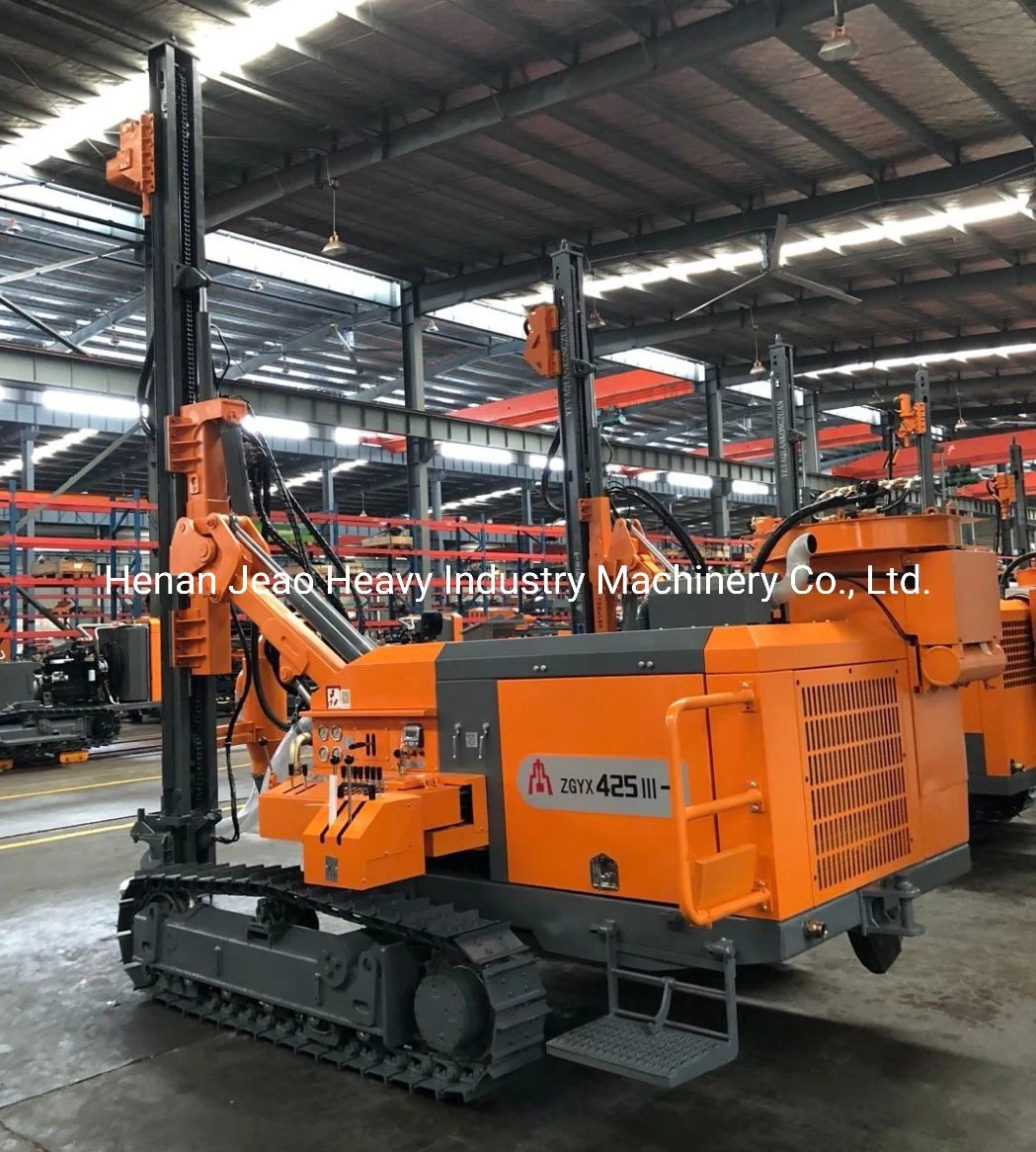

Specification for Blasthole Drill Rig for Sale ZGYX-425-1 Rock Drilling Rig Machine
| Model No | ZGYX-425-1 |
| Rock hardness | F=6-20 |
| Hole diameter | 110-152mm |
| Economic Drill depth | 30m |
| Rotating speed | 0-100r/min |
| Rotary torque | 3200N.m |
| Feed force | 20000N |
| Pull up force | 45000N |
| Propulsion Type | Cylinder-Chain |
| Walking speed | 0-2.5km/h |
| Grade ability | 30° |
| Net weight | 6000KGS |
| Dimension | 7000*2250*2700mm |
| Diesel Engine | 58/ 73.5Kw,2400r/min) |
| Drill rod specification(mm) | 76×3000mm |
| Hammer | 4"/5" |
| Working pressure | 0.7-2.5MPa |
| Air consumption | 8-20M3/min |
| Remark | Pneumatic-Hydraulic |
| Dust collection | Standard equipment |
| Model No | |
| ZGYX-425 | 58Kw Yuchai YC4DK-80 |
| ZGYX-425-1 | 73.5 Kw Yuchai YC4D-100 |
Phone for ZGYX425-1 Blasthole Drill Rig for Sale ZGYX-425 Rock Drilling Rig Machine
